제품 정보

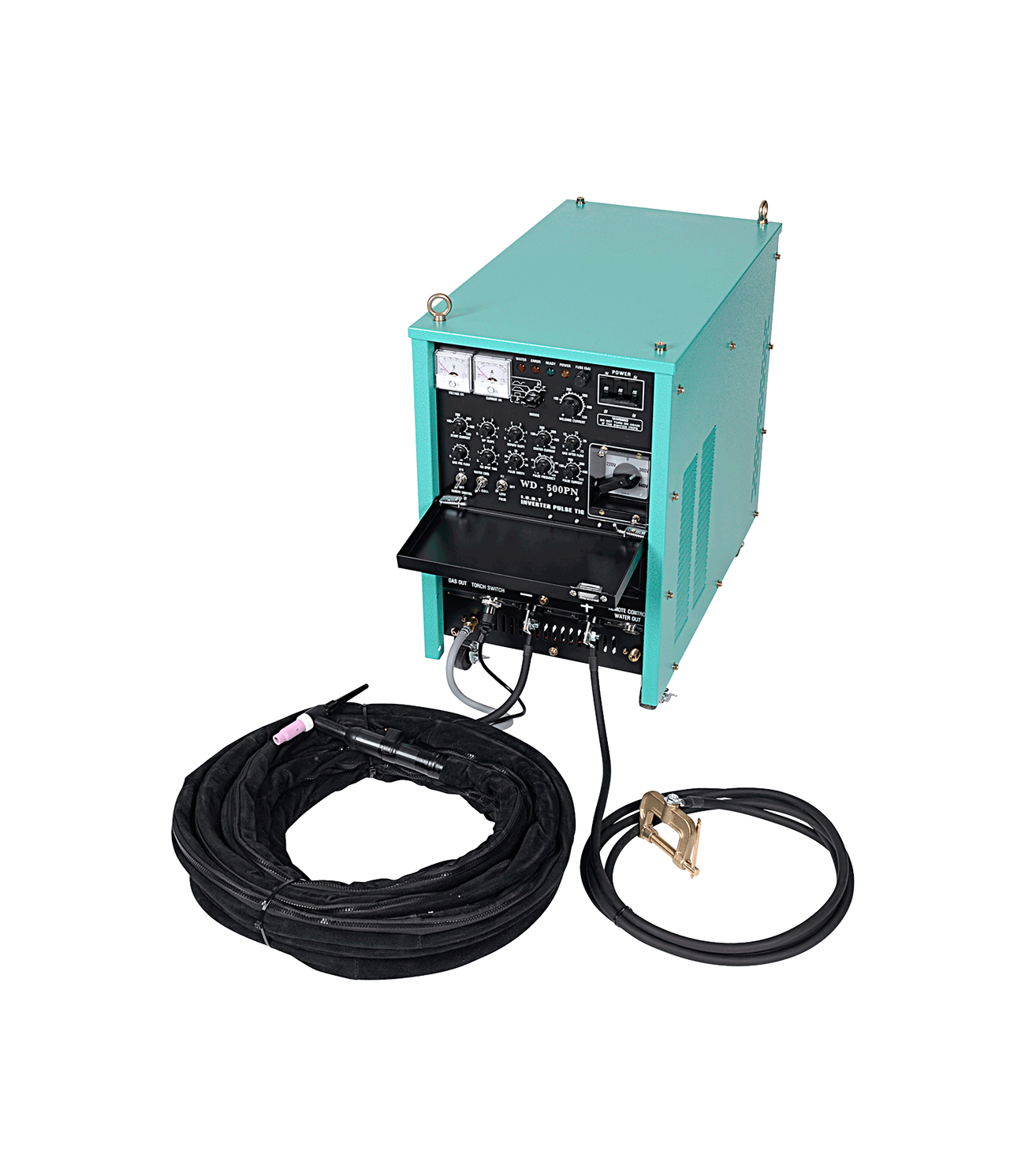

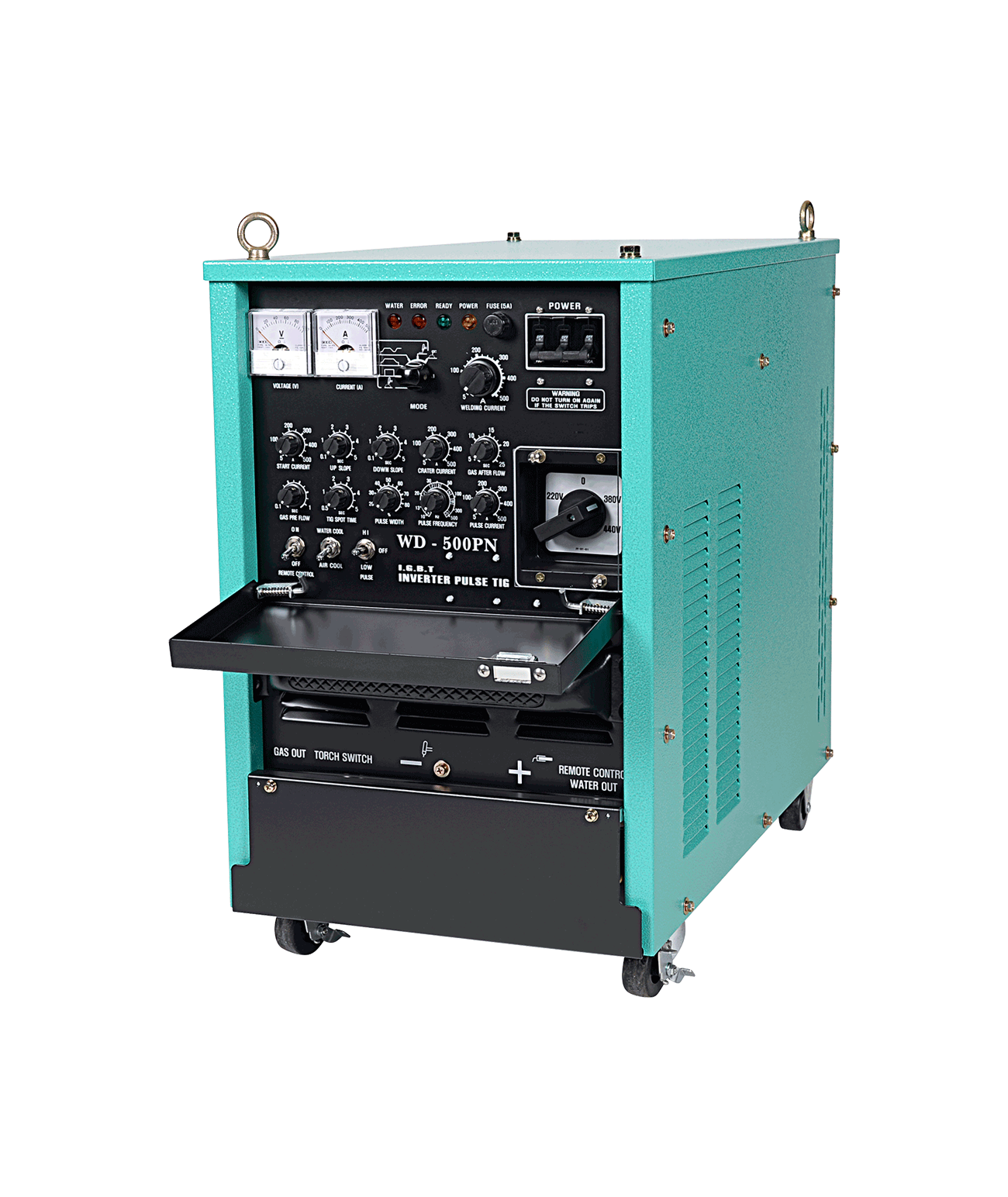

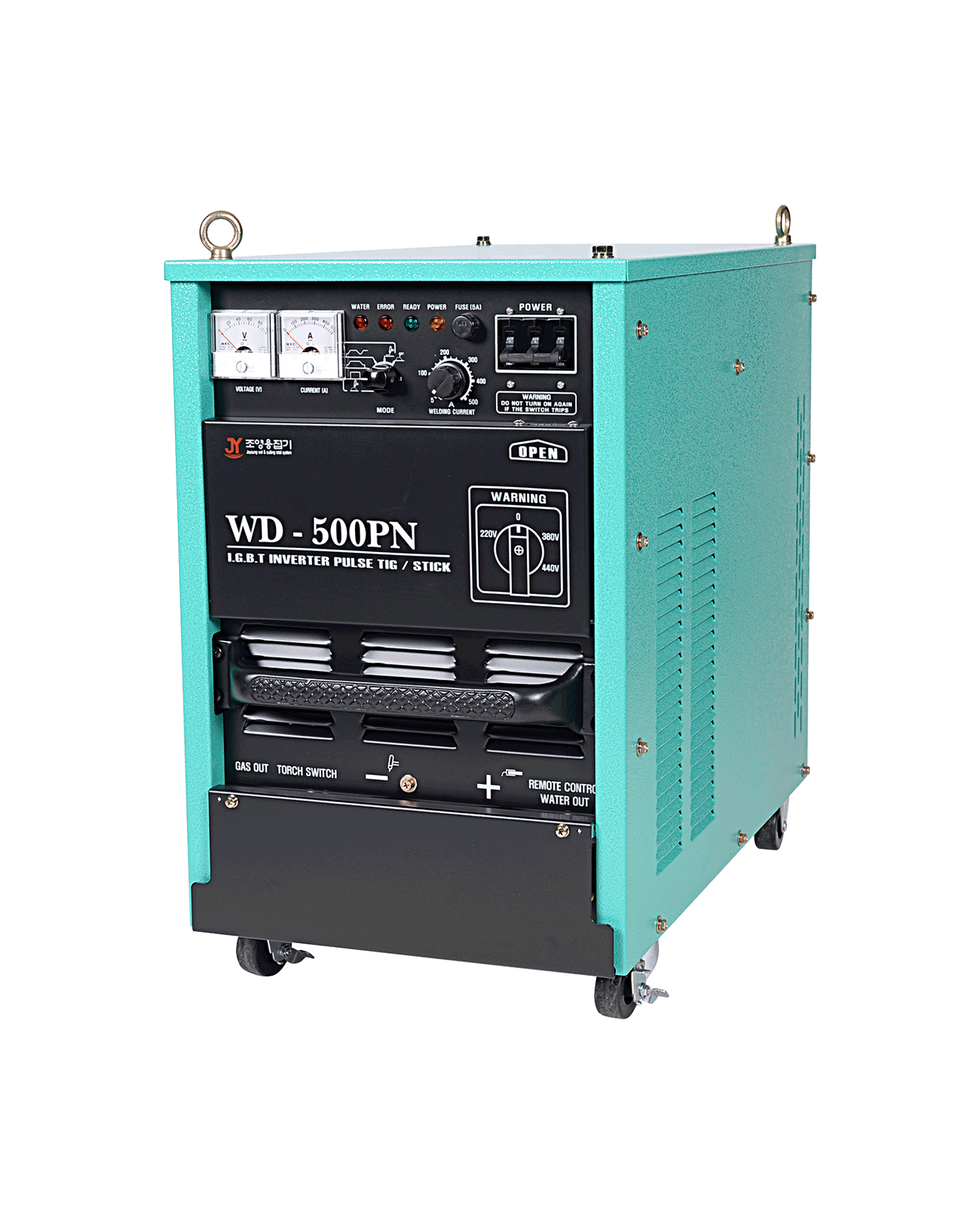

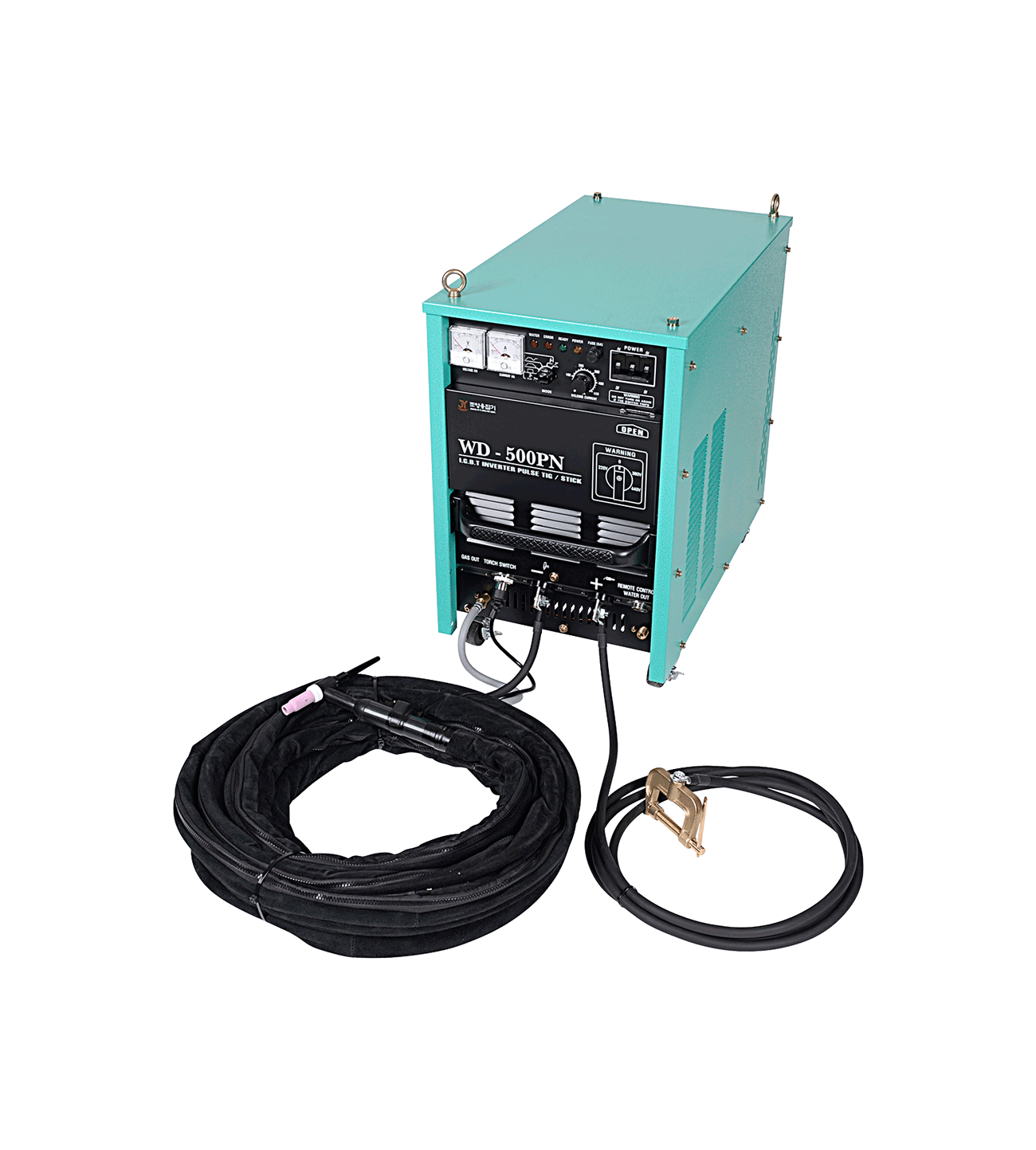

WD WD-500PN
Special Feature
특장점① | * Built-in pulse function |
---|---|
특장점② | * Selectable various functions |
특장점③ | * High-performance direc-current TIG arc welder |
특장점④ | * Built-in remote control function |
특장점⑤ | * Suitable to automatic line |
특장점⑥ | * Excellent performance for thin, medium, or thick plates |
특장점⑦ | * Possible single-phase or triple-phase input / * 220V/380V/440V combined use |
규격 | 360 x 623 x 580 (360 x 693 x 615) |
기타 | ※ Product specification can be changed unexpectedly for product performance improvement. / ※ Remote control is separate way option. |
제품설명
Specification | |||||||||||||||||||||||
MODE | WD - 500PN | ||||||||||||||||||||||
Process | TIG | STICK | |||||||||||||||||||||
Output Current | A | 3 Phase - | 500 | 290 | |||||||||||||||||||
1 Phase - | 320 | ||||||||||||||||||||||
Input Voltage | V | 220V / 380V / 440V ±10% | |||||||||||||||||||||
Rated Frequency | Hz | 50 / 60 | |||||||||||||||||||||
Rated Input | KVA | 17.1 | |||||||||||||||||||||
Rated load Voltage | V | 30 | |||||||||||||||||||||
No load Voltage | V | 67 | |||||||||||||||||||||
Duty Cycle | % | 50 | |||||||||||||||||||||
Output Current range | A | 5~500 | 10~290 | ||||||||||||||||||||
Pulse Current range | A | - | |||||||||||||||||||||
Start Current range | A | 5~500 | |||||||||||||||||||||
Crater Current range | A | 5~500 | |||||||||||||||||||||
Gas Pre flow | sec | 0.1~1 | |||||||||||||||||||||
Gas After flow | sec | 3~25 | |||||||||||||||||||||
Up Slope | sec | 0.1~5 | |||||||||||||||||||||
Down Slope | sec | 0.1~5 | |||||||||||||||||||||
Arc Spot | sec | 0.1~5 | |||||||||||||||||||||
Pluse Frequency | Hz | LOW : 0.5~25, HI : 10~500 | |||||||||||||||||||||
Pluse Width | % | 15 ~ 85 | |||||||||||||||||||||
Crater control |
| Off, On, Repeat | |||||||||||||||||||||
Dimension (WxDxH) | mm | 360 x 623 x 580 (360 x 693 x 615) | |||||||||||||||||||||
Weight | kg | 51.5 |
