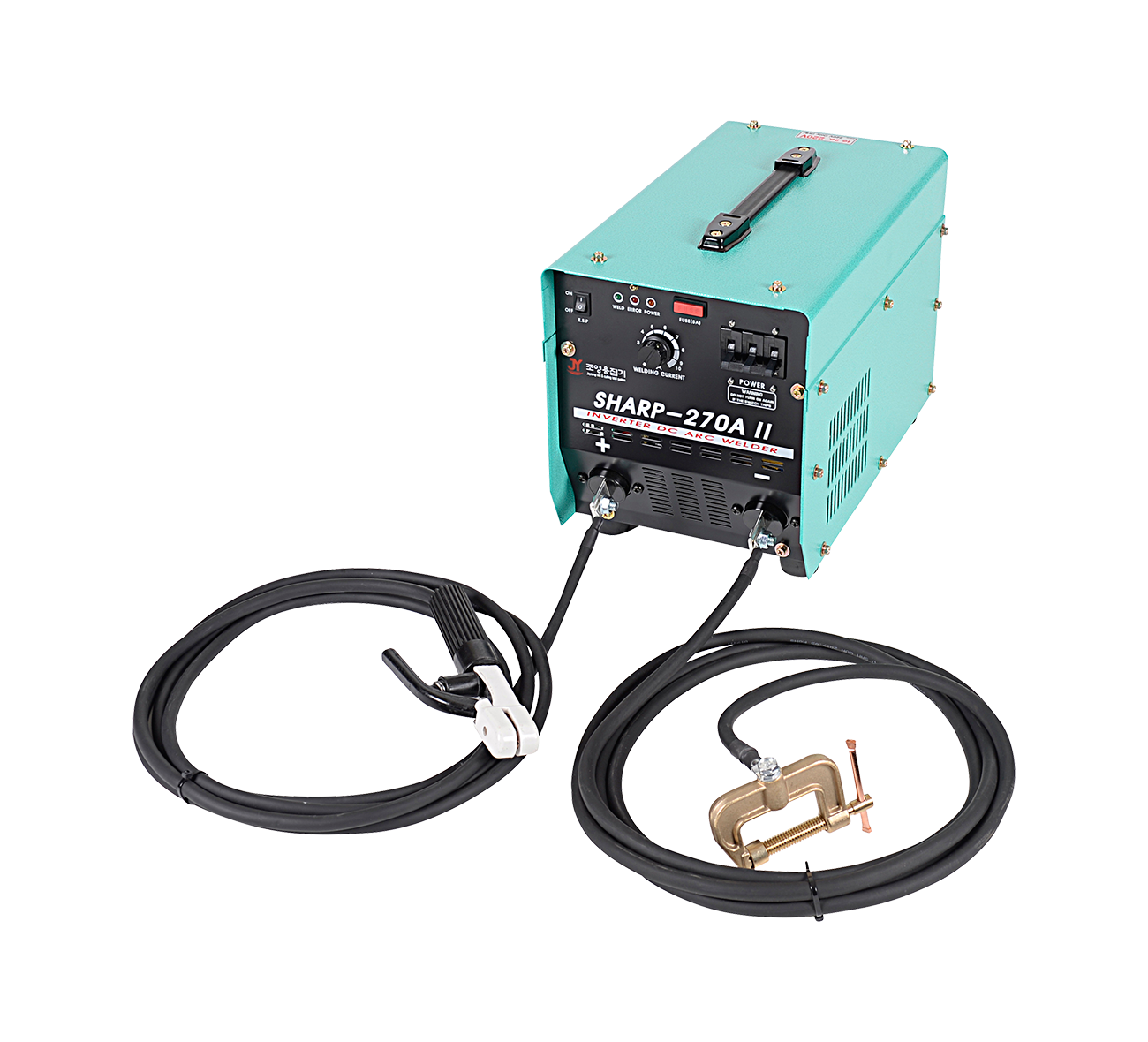

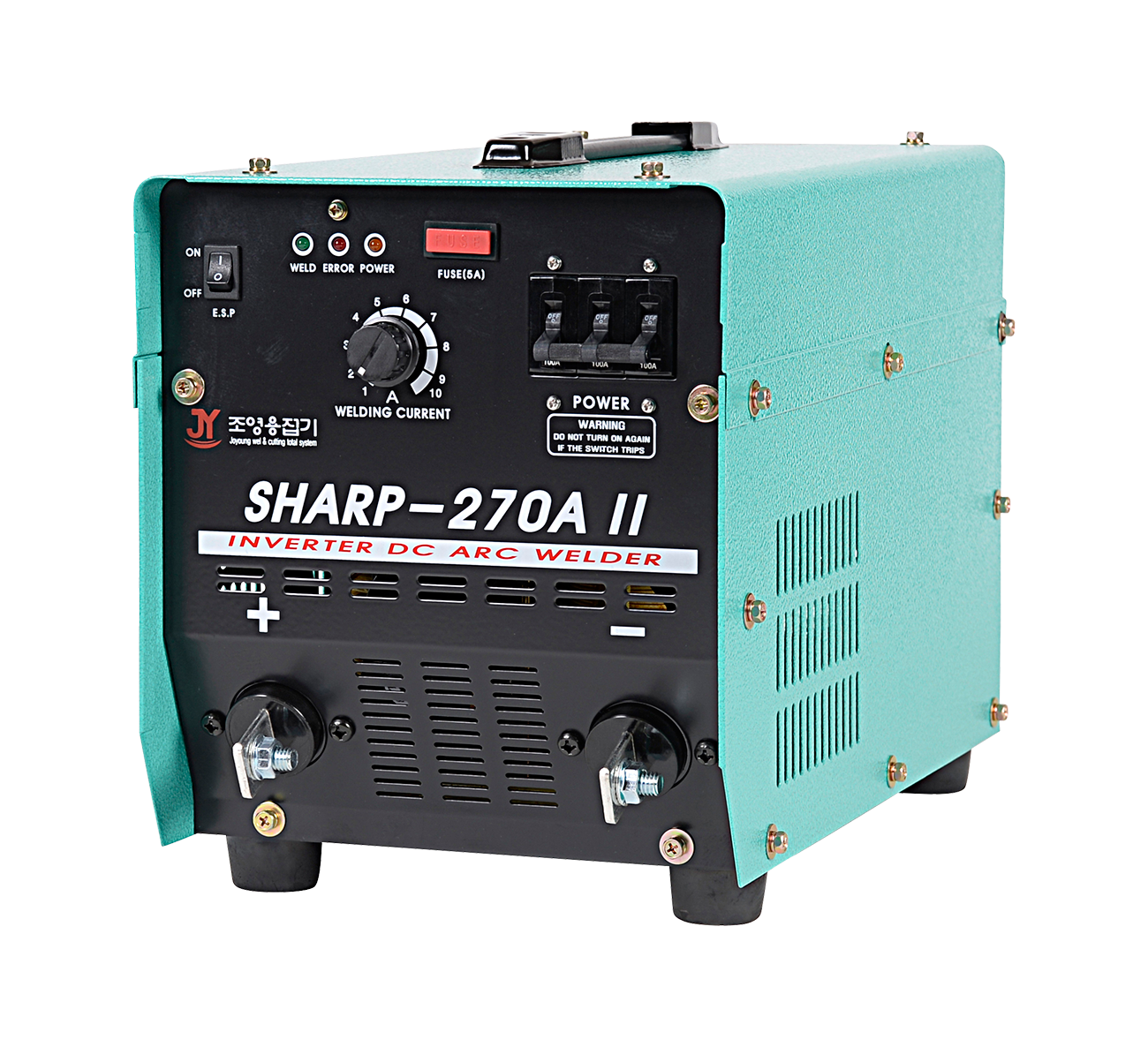

SHARP SHARP-270A II
Special Feature
특장점① | * The best performance for medium or thick plate |
---|---|
특장점② | * Securing the highest profitability with energy saving |
특장점③ | * High use-rate and soft welding property |
특장점④ | * Possible single-phase or triple-phase input |
특장점⑤ | * Built-in electric shock preventin function |
특장점⑥ | * Use welding rod 4.0Ø~5.0Ø |
특장점⑦ | * Possible single-phase or triple-phase input |
규격 | 250 x 445 x 295 |
기타 | ※ Product specification can be changed unexpectedly for product performance improvement. |
- 이전글SHARP-230A II 20.12.13
- 다음글SHARP-300A II 20.12.13
제품설명


Specification | |||||||||||||||||||||||
MODE | SHARP-270A II | ||||||||||||||||||||||
3 Phase | 1 Phase | ||||||||||||||||||||||
Output Current | A | 270 | 230 | ||||||||||||||||||||
Input Voltage | V | 220V ± 10% | |||||||||||||||||||||
Rated Frequency | Hz | 50 / 60 | |||||||||||||||||||||
Rated Input | KVA | 10.4 | 9.3 | ||||||||||||||||||||
Rated load Voltage | V | 30.8 | 29.2 | ||||||||||||||||||||
Duty Cycle | % | 50 | |||||||||||||||||||||
Dimension (WxDxH) | mm | 250 x 445 x 295 | |||||||||||||||||||||
Weight | kg | 19 |
※ Product specification can be changed unexpectedly for product performance improvement.
